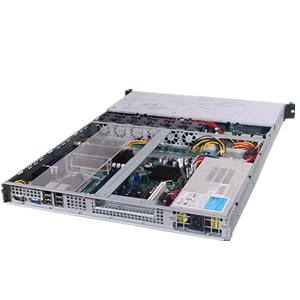

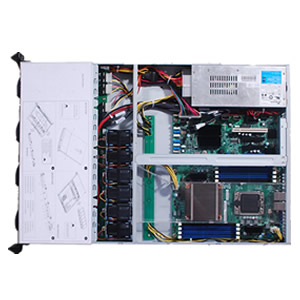

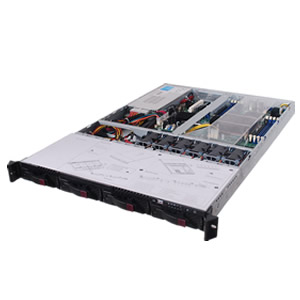

ST104A-HB-L-I2400

Product Features

◆1U  Hot-swappable Chassis ,Support  INTEL S2400SC  motherboard.
◆Supports four hot-swappable 3.5-inch hard disk (Universal 2.5-inch).Support 9.5mm slim CD-ROM (by conversion bracket into 2.5 SSD drive bays, a standard 1U power bit..
◆Using shockproof 4 * 4028 + 2 * 4056 wind wall, wind round after round ducting.
◆Standard 1U power left set.
Product Detail Compatible Download >>

Specification

Order Code
ST104A-HB-L-I2400
Description
1U four hot-swap
M/B Form Factor
INTEL S2400SC
Processor
Supports dual intel
Support Backplane
6GB/s SATA SAS
Front bezel
Option
Chassis Dimension
D x W x H (mm) 655 x 440 x 44 (mm)
D x W x H (inch) 25.79" x 17.32" x 1.73"
Power Supply
Form Factor 1U(left set)
Drive Bay
3.5" or 2.5" HDD; 4（MAX=4）
Slim CD-ROM 1
Generality
Metal Material SGCC/SECC(Option)
Metal Thickness 1.0mm+1.2mm
Plastic Material Type ABS
Expansion Slots
Cross card 1
System Cooling
Right set Standard 2 * 4056 + 4 * 4028 ball fan
I/O Gasket
Customize
Slide Rails
Option
Front Panel
Front Control Power On/Off System Reset
Indicator Power LED*1
HDD Activity LED*1
LAN Activity LED*2
System warning LED*1
Ports USB Ports*1
Shipping Information*
Net Weight (Chassis Only) 7.7kg
Gross Weight (w/Packing) 11kg
Cubic Feet 770*585*162 mm
Container Information
20' 444 Box
40' 920 Box
40'H 1027 Box



Standard Packing List

Part Category Qty Description
Chassis 1 1U chassis base
HDD Trays 4 For 3.5"or 2.5" HDD
Cables 1 Power On/Off System Reset
PCB 1 HDD Backplane
Fans 6 2*4056+4*4028 ball fan
I/O Gasket 1 I/O Gasket
Expansion Slots 1 Cross card



Optional Accessory



CPU Air Duct

Product Part No. Description
  ST-DFC06 Be applicable to：INTEL S2400SC2




Power

Product Part No. Description
SS-400H1U SeaSonic 1U 400W，SS-400H1U Active PFC 80+
SS-460H1U SeaSonic 1U 460W，SS-460H1U Active PFC 80+



Front bezel

Product Part No. Description
STCMB-1U

Dedicated to ST104A/B/C Series 1U chassis



Riser Card

Product Part No. Description
ST18X-E PCI-E X8、Dedicated to ST104A/B/C Series 1U chassis
ST116X-E PCI-E X16、Dedicated to ST104A/B/C Series 1U chassis

Slide Rails

Product Part No. Description
ST104 Standard 1U machine rail.
ST104-LX

Blue zinc plated strengthen type 1U machine rail.
