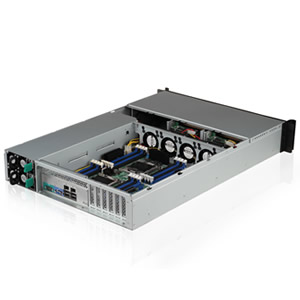

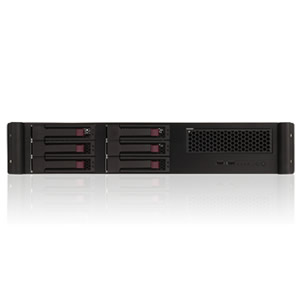

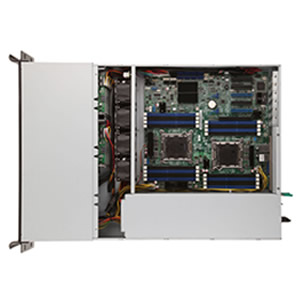

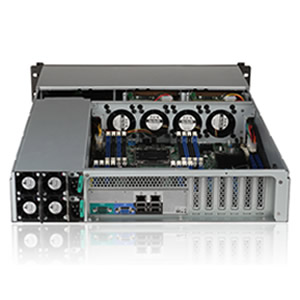

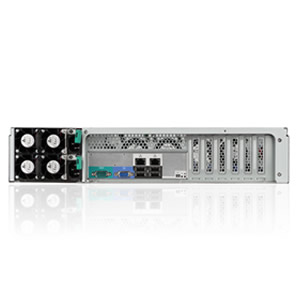

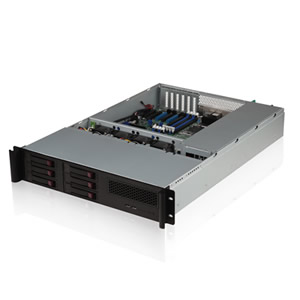

ST206A-HB-R750

Product Features

◆2U  Hot-swappable Chassis ,Support 12 * 13 down compatible motherboard.
◆Supports six hot-swappable 3.5-inch hard disk (Universal 2.5-inch).2 5.25 CD-ROM drive (by converting stent into 2.5 SSD hard drive location).
◆400W (1 +1)  redundancy.
◆Using shockproof  5 *6038  wind wall, wind round after round ducting.
Product Detail Compatible Download >>

Specification

Order Code
ST206A-HB-R750
Description
2U six hot-swap
M/B Form Factor
12*13(30.5CM*33.2CM)
Processor
Supports dual intel/AMD processors
Support Backplane
6GB/s SATA SAS
Front bezel
Option
Chassis Dimension
D x W x H (mm) 655 x 440 x 88 (mm)
D x W x H (inch) 25.79" x 17.32" x 3.46"
Power Supply
Form Factor 750W (1+1)
Drive Bay
3.5" or 2.5" HDD; 6（MAX=6）
Slim CD-ROM 2
Generality
Metal Material SECC/SGCC(Option)
Metal Thickness 1.0mm+1.2mm
Plastic Material Type ABS
Expansion Slots
The half high standard card 6（Optional turn 3 Horizontal Plug）
System Cooling
Middle Standard 4 * 6038 ball fan
I/O Gasket
Removable
Slide Rails
Option
Front Panel
Front Control Power On/Off System Reset
Indicator Power LED*1
HDD Activity LED*1
LAN Activity LED*2
System warning LED*1
Ports USB Ports*2
Shipping Information*
Net Weight (Chassis Only) 16kg
Gross Weight (w/Packing) 19kg
Cubic Feet 785*595*210 mm
Container Information
20' 330 Box
40' 670 Box
40'H 724 Box



Standard Packing List

Part Category Qty Description
Chassis 1 2U chassis base
HDD Trays 6 For 3.5" HDD
Cables 1 Power On/Off System Reset
PCB 1 HDD Backplane
Fans 4 4*6038 ball fan
Power 2 750W (1+1)




Optional Accessory



Riser Card

Product Part No. Description
ST18X-E PCI-E X8、專用于ST104A/B/C系列機箱
ST116X-E PCI-E X16、專用于ST104A/B/C系列機箱

Slide Rails

Product Part No. Description
ST104 標準1U上機導軌，
ST104-LX

鍍藍鋅加強型1U上機導軌。
