ST412A-LB

Product Features

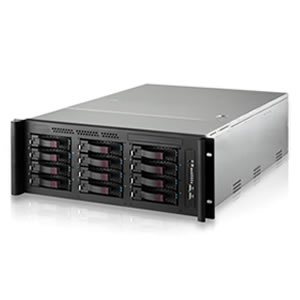

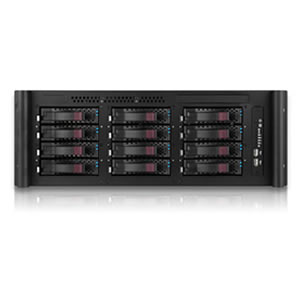

◆ 4U rackmount server chassis no hot swap support 12 * 13 down compatible motherboard.
◆ support 12 hot-swappable 3.5-inch hard drive (14 Universal 2.5 inch), support for 9.5mm slim CD-ROM drive, a standard power bit.
◆ Adopt shockproof 4 * 9038 wind wall.
Product Detail Compatible Download >>

Specification

Order Code
ST412A-LB
Description
4U
M/B Form Factor
12*13(30.5CM*33.2CM)
Processor
Supports dual intel/AMD processors
Support Backplane
NO
Front bezel
NO
Chassis Dimension
D x W x H (mm) 650 x 438 x 175(mm)
D x W x H (inch) 25.59" x 17.24" x 6.89"
Power Supply
Form Factor Standard Power
Drive Bay
3.5" or 2.5" HDD; 12（MAX=14）
Slim CD-ROM 1
Generality
Metal Material SECC/SGCC(Option)
Metal Thickness 1.0mm+1.2mm
Plastic Material Type ABS
Expansion Slots
The half high standard card 7（Optional turn 3 Horizontal Plug）
System Cooling
Middle Standard 4 * 9038 ball fan
I/O Gasket
Removable
Slide Rails
Option
Front Panel
Front Control Power On/Off System Reset
Indicator Power LED*1
HDD Activity LED*1
LAN Activity LED*4
System warning LED*1
Ports USB Ports*2
Shipping Information*
Net Weight (Chassis Only) 14.75kg
Gross Weight (w/Packing) 18.25kg
Cubic Feet 835*575*260 mm
Container Information
20' 259Box
40' 537Box
40'H 600Box



Standard Packing List

Part Category Qty Description
Chassis 1 4U chassis base
HDD Trays 12 For 3.5" HDD
Cables 1 Power On/Off System Reset
Fans 4 4*9038 ball fan





Optional Accessory

Slide Rails

Product Part No. Description
ST104
ST104-LX
